Includes UK delivery and installation.

UNBEATABLE LOW PRICE - Contact us for price match 01639 890609

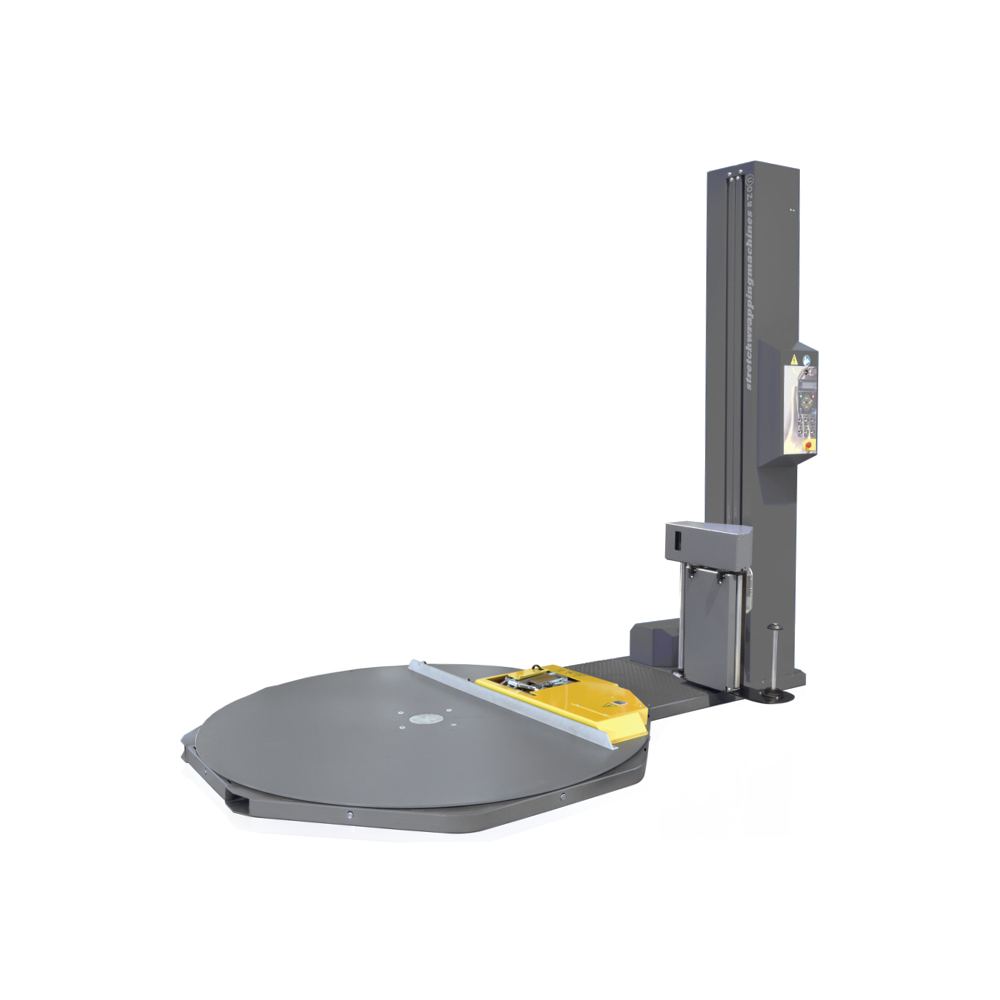

IBIS C-One Super Plus is a fully automatic low profile turntable machine, with four original solutions: automatic film clamping system; automatic film cutting; film sealing system; “tail” elimination device.

Along with an infrared/radio remote control, these four systems allow the operator to be free from all manual work, increasing safety, improving packaging quality and saving time.
Automatic, practical, robust, simple: C-One Super Plus is the right solution even for the most demanding customers.

Technical Details

• Height: 2473 mm

• Width: 1650 mm

• Length: 2804 mm

• Turntable height: 80 mm

• Weight: 600 Kg

• Power supply: 230 VAC VAC 3PH+N

• Power absorption: 2 kW

Specifications

• Automatic cycle for film hooking, pallet wrapping, film cold cutting and film hot sealing

• Air device to blow up the film tail

• Power pre-stretch carriage

• Electronic printed circuit board for the management of the cycle

• Frequency controller for carriage speed adjustment

• Frequency controller for turntable speed adjustement

• Loading plate ø 1650 mm

• Maximum height of pallet: 2200 mm

• Maximum size of the pallet: 800x1200 mm

• Maximum loading weight: 2000 kg

• Photocell for pallet height detection

• Safety stop at the base of the carriage

• Stop at 0 position

• Power board IP54

• 3 password levels (including lock password)

• Adjustable parameters by the control panel without password: cycle selection, bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed, carriage descent speed, film tension, starting wrapping height

• 3 working cycles: ascent/descent; topsheet; layers

• Storage of 32 end user programs

• 3 working ways: semimanual, semiautomatic, fixed height

• Strenghtening operation

• Acoustic warning at the cycle beginning and stop

• Autodiagnostic

• Wrapped pallet counter

• Receiver for infrared/radio remote control

• Powder coating

• Braked turntable at the end of the cycle

Product Options (Available on request)

• Top-press

• Adjustable power pre-stretch

• 3000 mm max wrapping height

• 1800 mm turntable

• 2000 kg max pallet weight

• Remote control

• Ramp

• Pit frame

• Photocell for dark loads

• Weighing system

• Mechanical system to brake roll containers

• Feet under the machine

• Safety fences
