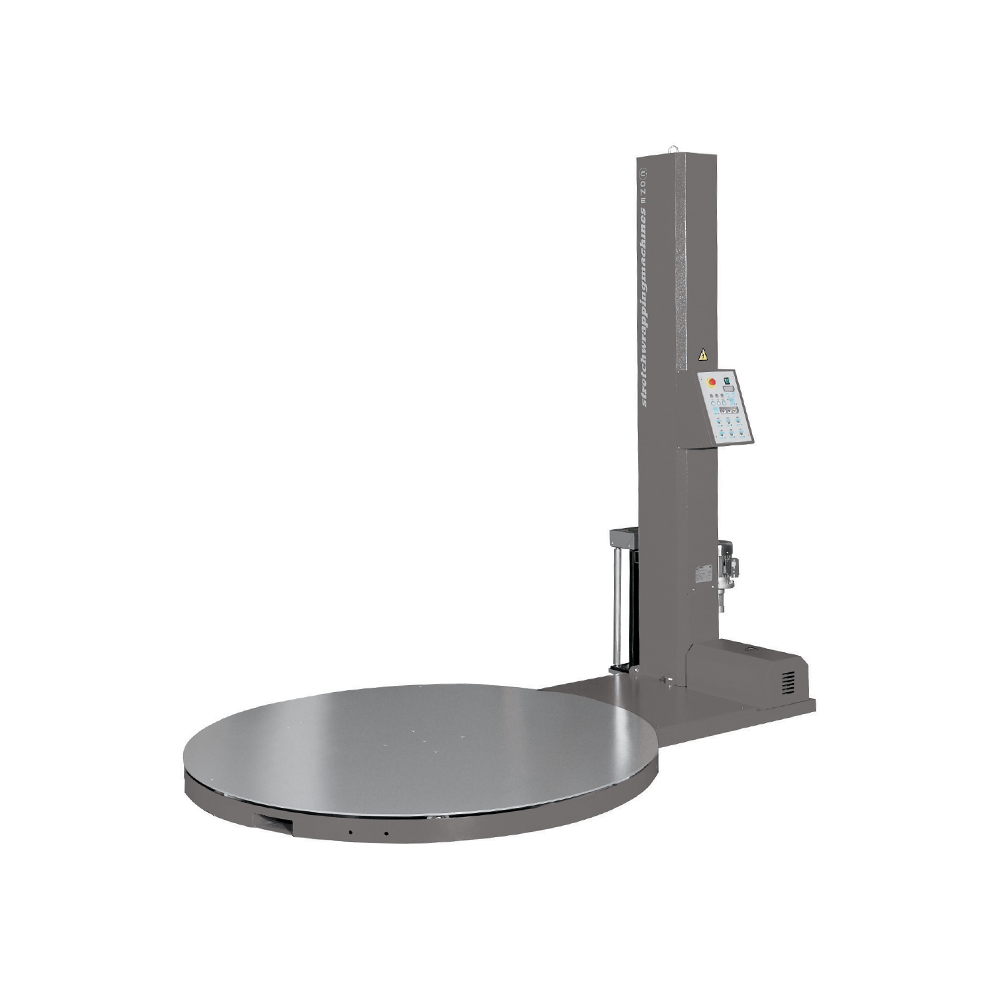

IBIS C-One Cresco Semi-Automatic Pallet Wrapper


IBIS C-One Cresco Semi-Automatic Pallet Wrapper

£4,403.00

Includes UK delivery and installation.

UNBEATABLE LOW PRICE - Contact us for price match 01639 890609

In creating Cresco, the C-One team looked at the essential points. Cresco has only what it is really needed for a good wrapping machine:

inverter for the turntable, inverter for the carriage, film stretching adjustment, pallet height sensor, bottom and top turns adjustment, zero position stop, three working cycles (up & down, only up, top-sheet), two working modes. 3 programs can be saved by the customer, including a completely customised cycle thanks to the “Playback” mode.

Even the structure is the result of a simplification process. Cresco is simply the core of what you need: a stretch wrapping machine. That’s it!

Technical Details

  • Height: 2238 mm

  • Width: 1500 mm

  • Length: 2370 mm

  • Turntable height: 75 mm

  • Weight: 250 Kg

  • Power supply: 230 VAC VAC 3PH+N

  • Power absorption: 1 kW

Specifications

  • Electronic printed circuit board for the management of the cycle

  • Frequency controller for turntable speed adjustment (from 3 to 12 RpM)

  • Frequency controller for carriage speed adjustment (speed going up and speed going down can be set differently)

  • Loading plate ø 1500 mm

  • Maximum wrapping height: 2200 mm

  • Maximum size of the pallet: 800x1200 mm

  • Maximum loading weight: 1200 kg

  • Electromagnetic brake for film stretching

  • Photocell for pallet height detection

  • Safety stop at the base of the carriage

  • Stop at 0 position

  • Power board IP54

  • 4 digits display

  • 2 access keys (including lock mode)

  • Adjustable parameters by the control panel: cycle selection, bottom turns, top turns, rotation speed, carriage speed going up, carriage speed going down, film tension.

  • Many parameters available at upper password level

  • Reinforcing operation

  • 3 working cycles: ascent/descent; topsheet; only ascent

  • 3 programs can be saved by the customer

  • “Playback” special cycle

  • 2 working ways: semimanual, semiautomatic.

  • Acoustic warning at the cycle beginning and stop

  • Autodiagnostic

  • Powder coating

  • Braked turntable at the end of the cycle

  • 2 years warranty

Product Options (Available on request)

  • 1650 mm turntable

  • 2000 kg max pallet weight

  • 2500 mm wrapping height

  • Ramp

  • Pit frame

  • Photocell for dark loads

  • Power pre-stretch carriage
