Includes UK delivery and installation.

UNBEATABLE LOW PRICE - Contact us for price match 01639 890609 or visit see Ibis Packaging Pallet Wrappers

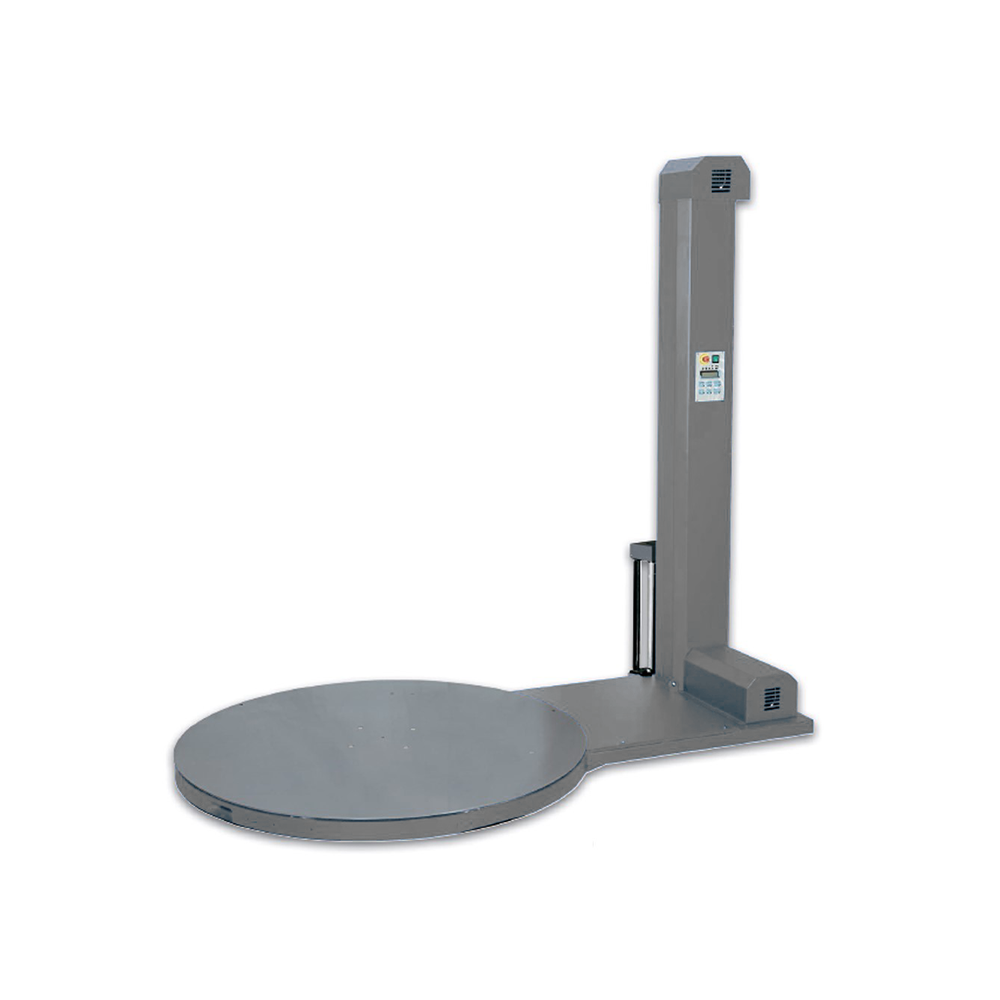

You have been told for years that a pallet wrapper is too expensive and you have to wrap a pallet by hand? Now the price can’t be an alibi anymore, IBIS Tiro arrived to prevent all people from turning around a pallet. Its small price make it affordable even for micro and small productions, its features make it a good choice even for medium ones. Its user-friendly control panel allows the operator to save up to 3 programs and set bottom wraps, top wraps, rotation speed, carriage speed up, carriage speed down and photocell delay. C-One Tiro has been designed thinking to usability and effectiveness, reducing the parts that could break down, to give years of reliable working.

Technical Details

• Height: 2242 mm

• Width: 1500 mm

• Length: 2370 mm

• Turntable height: 75 mm

• Weight: 250 Kg

• Power supply: 230 1PH+N+PE VAC 3PH+N

• Power absorption: 0.75 kW

Specifications

• Electronic printed circuit board for the control of the cycle

• Frequency controller for turntable speed adjustment (from 3 to 12 RpM)

• Frequency controller for carriage speed adjustment (speed going up and speed going down can be set differently)

• Loading plate ø 1500 mm

• Maximum wrapping height: 2200 mm

• Maximum size of the pallet: 800x1200 mm

• Maximum loading weight: 1200 kg

• Mechanical brake for film stretching

• Photocell for pallet height detection

• Safety stop at the base of the carriage

• Stop at 0 position

• Power board IP54

• 5 digits display

• 2 access keys (including lock mode)

• Adjustable parameters by the control panel: cycle selection, bottom turns, top turns, rotation speed, carriage speed going up, carriage speed going down, photocell delay.

• Reinforcing operation

• 2 working cycles: up and down; only up

• 3 programs can be saved by the customer

• 2 working ways: semimanual, semiautomatic.

• Acoustic warning at the cycle beginning and stop

• Powder coating

• Braked turntable at the end of the cycle

• 2 years warranty

Product Options (Available on request)

• 1650 mm turntable;

• Ramp;

• Pit Frame;

• Cover for rotation motor;
